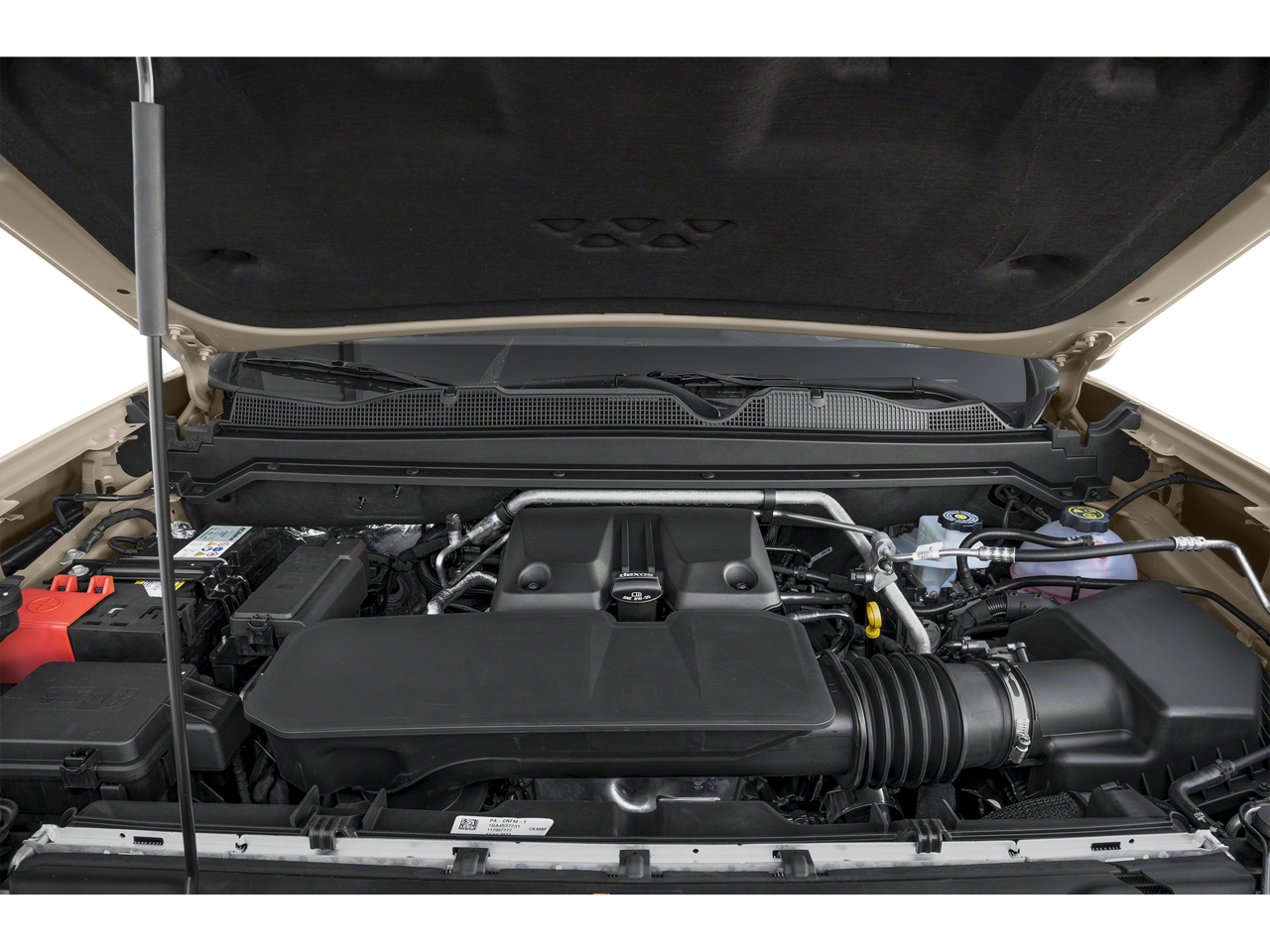

ENGINE, 2.7L TURBO HIGH-OUTPUT ($0)

• (GM Estimated 310 hp [231 kW] @ 5600 rpm
• GM Estimated 430 lb-ft of torque [583 Nm] @ 3000 rpm) (STD)

• Navigation System
• Preferred Equipment Group 2VL
• 6 Speakers
• 6-Speaker Audio System Feature
• AM/FM radio: SiriusXM
• Radio data system

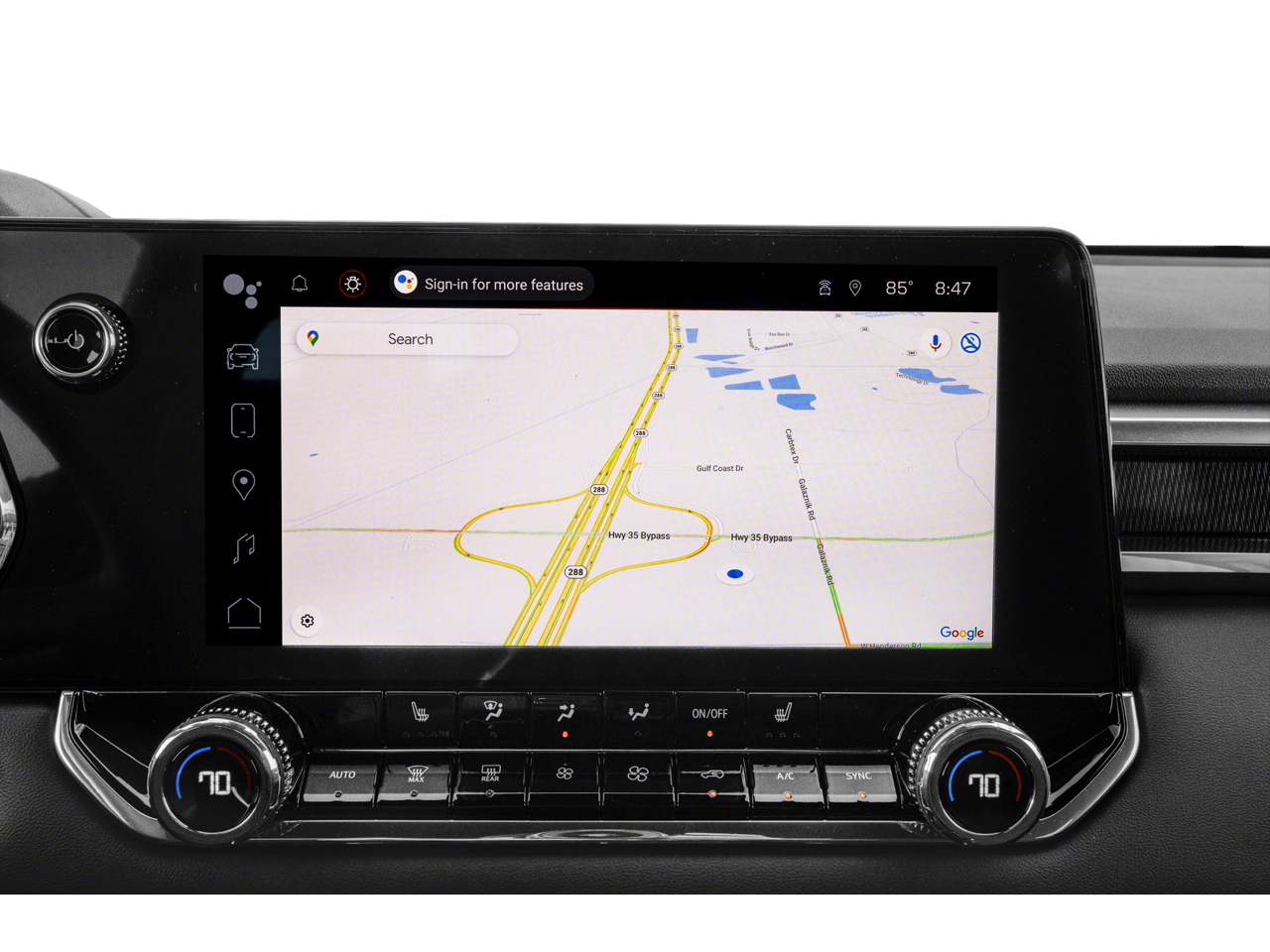

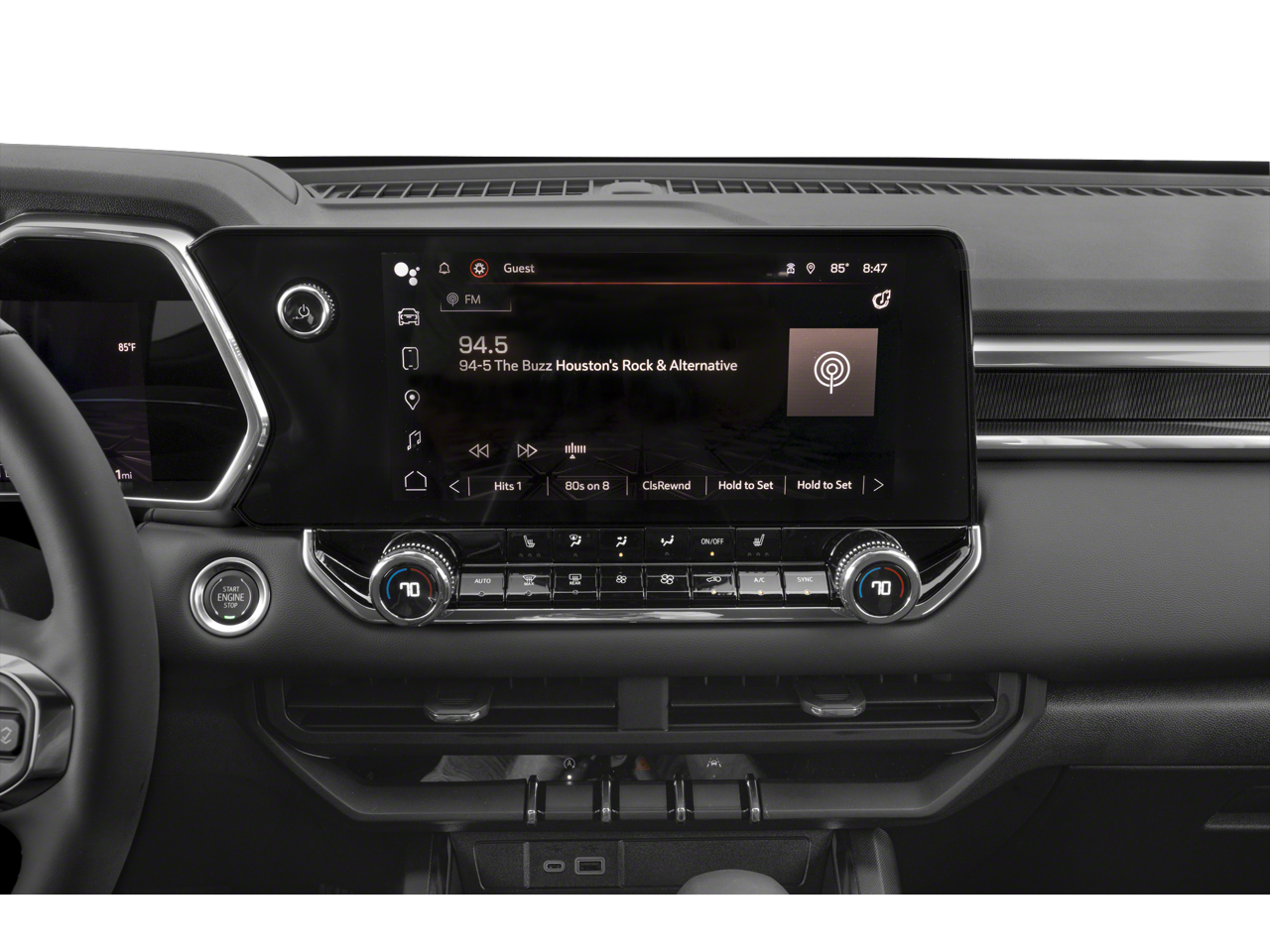

• Radio: 11.3" Diagonal Premium GMC Infotainment Sys
• SiriusXM w/360L
• Air Conditioning
• Power steering
• Power windows
• Remote keyless entry

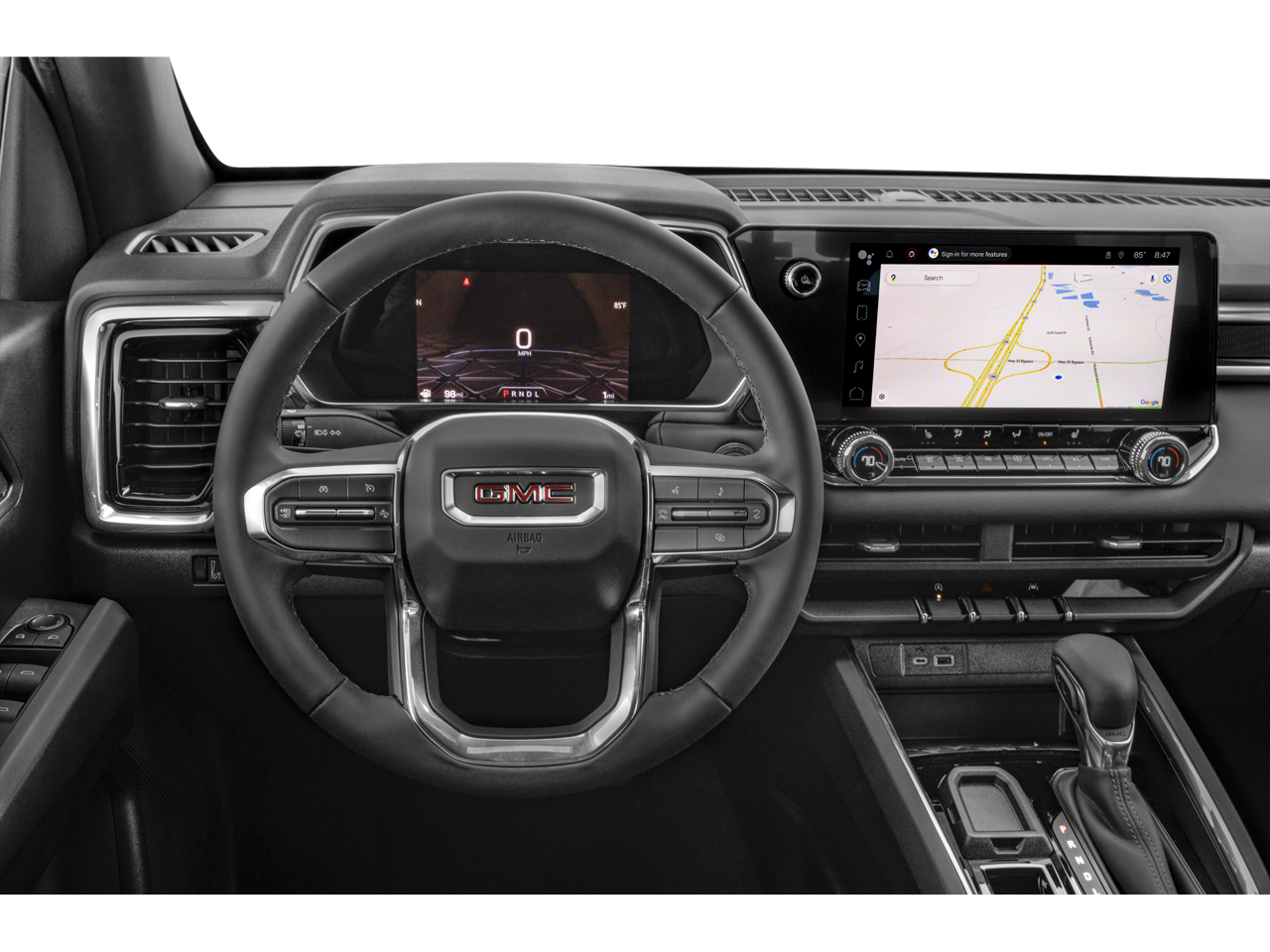

• Steering wheel mounted audio controls
• Speed-sensing steering
• Traction control
• 4-Wheel Disc Brakes
• ABS brakes
• Automatic Emergency Braking
• Dual front impact airbags
• Dual front side impact airbags
• Front anti-roll bar
• Front Pedestrian & Bicyclist Braking
• Front wheel independent suspension
• Low tire pressure warning
• Occupant sensing airbag
• Overhead airbag
• Brake assist
• Electronic Stability Control
• Auto High-beam Headlights
• Delay-off headlights
• Panic alarm
• Security system
• Speed control
• Automatic Stop/Start
• Stop/Start System Disable Button Engine Control
• Bumpers: body-color
• Front License Plate Kit
• IntelliBeam Automatic High Beam On/Off
• Power door mirrors
• Rear step bumper
• 1 Rear USB Ports in Center Console (Charge-Only)
• 2 1st Row USB Charge/Data Ports
• Apple CarPlay/Android Auto
• Canyon Pro Safety
• Cloth Seat Trim
• Compass
• Driver door bin
• Driver vanity mirror
• Following Distance Indicator
• Forward Collision Alert
• Illuminated entry
• Lane Keep Assist w/Lane Departure Warning
• Outside temperature display
• Overhead console
• Passenger vanity mirror
• Rear reading lights
• Tachometer
• Tilt steering wheel
• Trip computer
• Wireless Apple CarPlay/Wireless Android Auto
• 4-Way Manual Front Passenger Seat Adjuster
• 6-Way Manual Driver Seat Adjuster

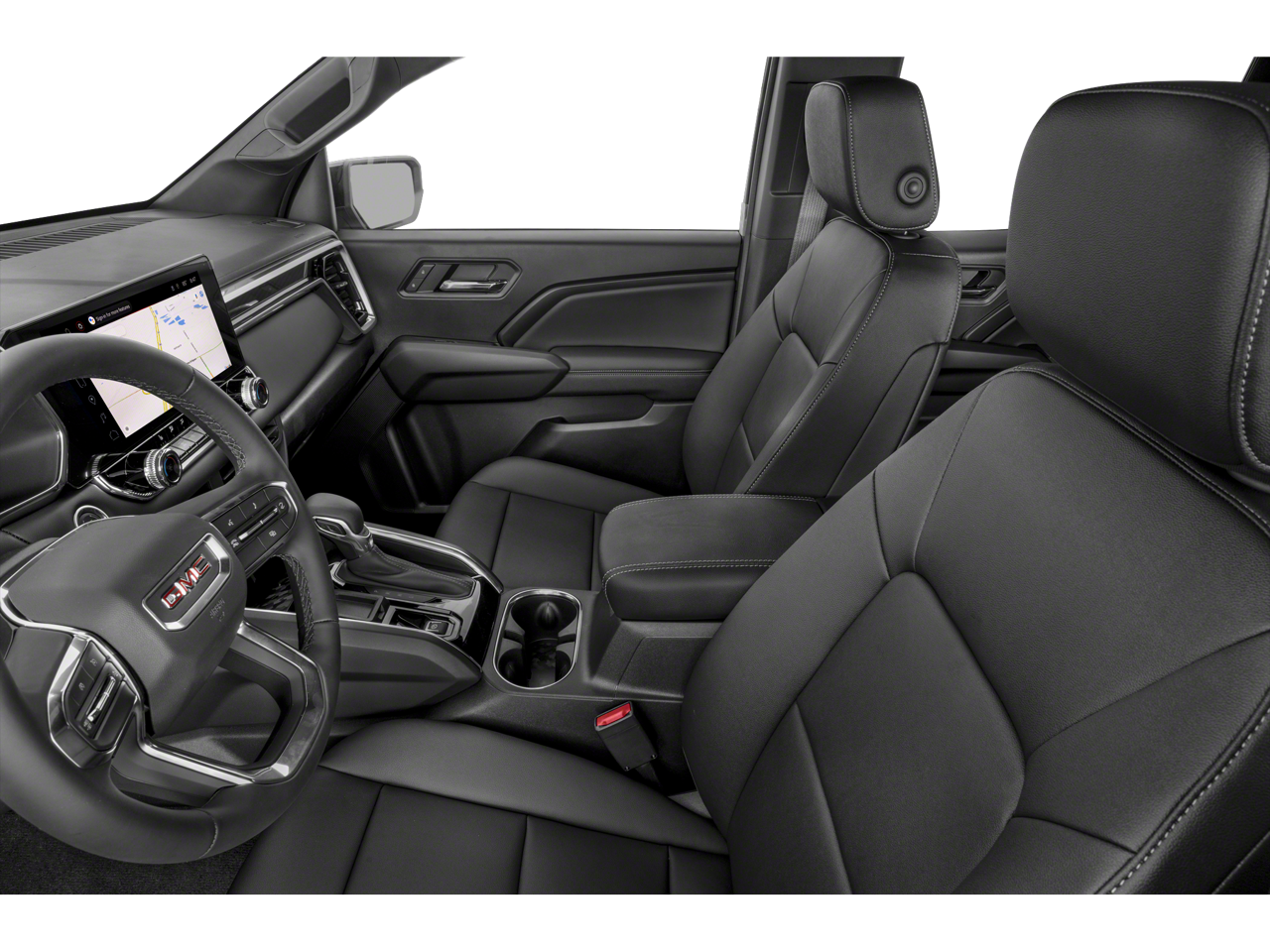

• Front Bucket Seats

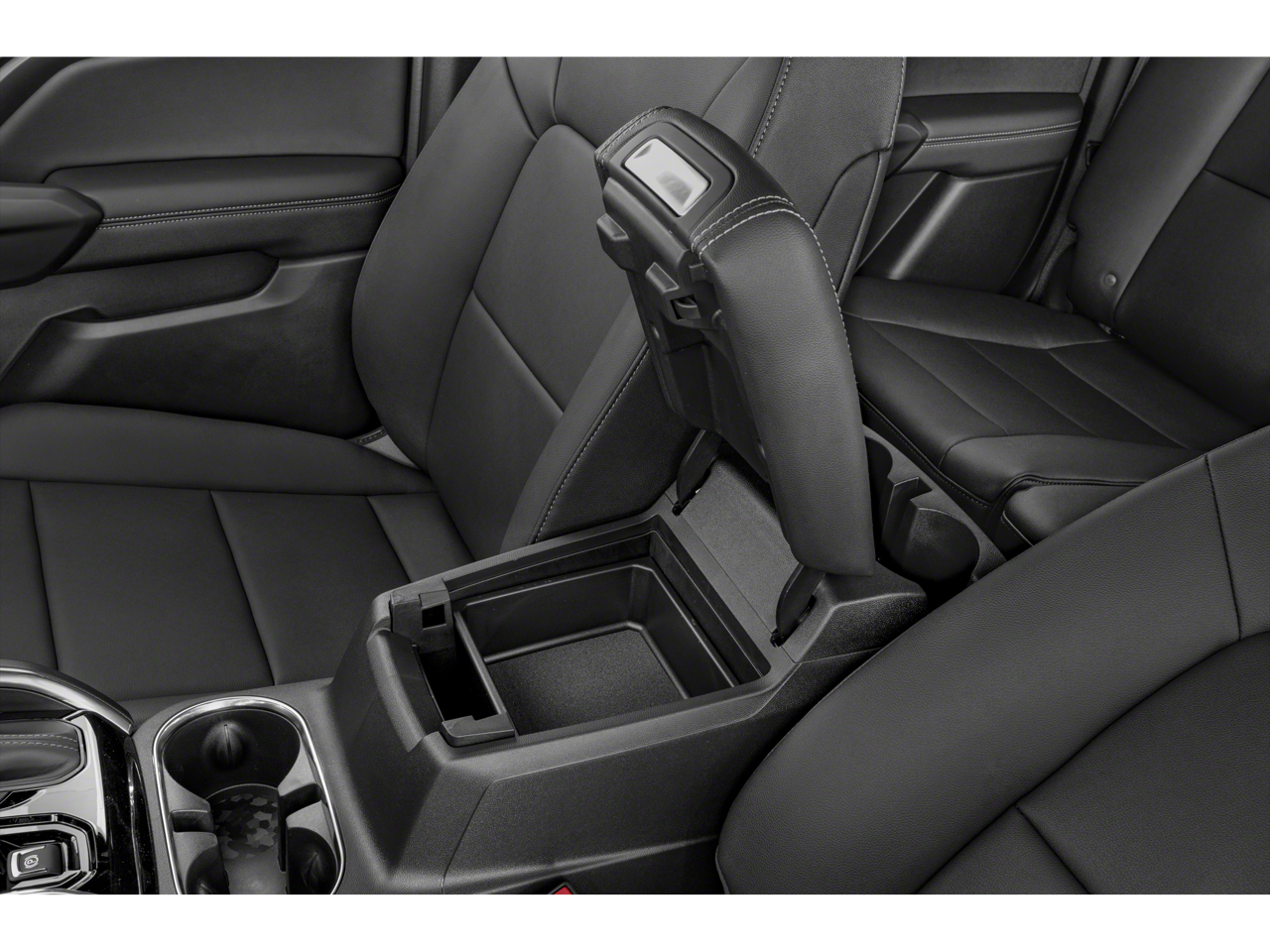

• Front Center Armrest

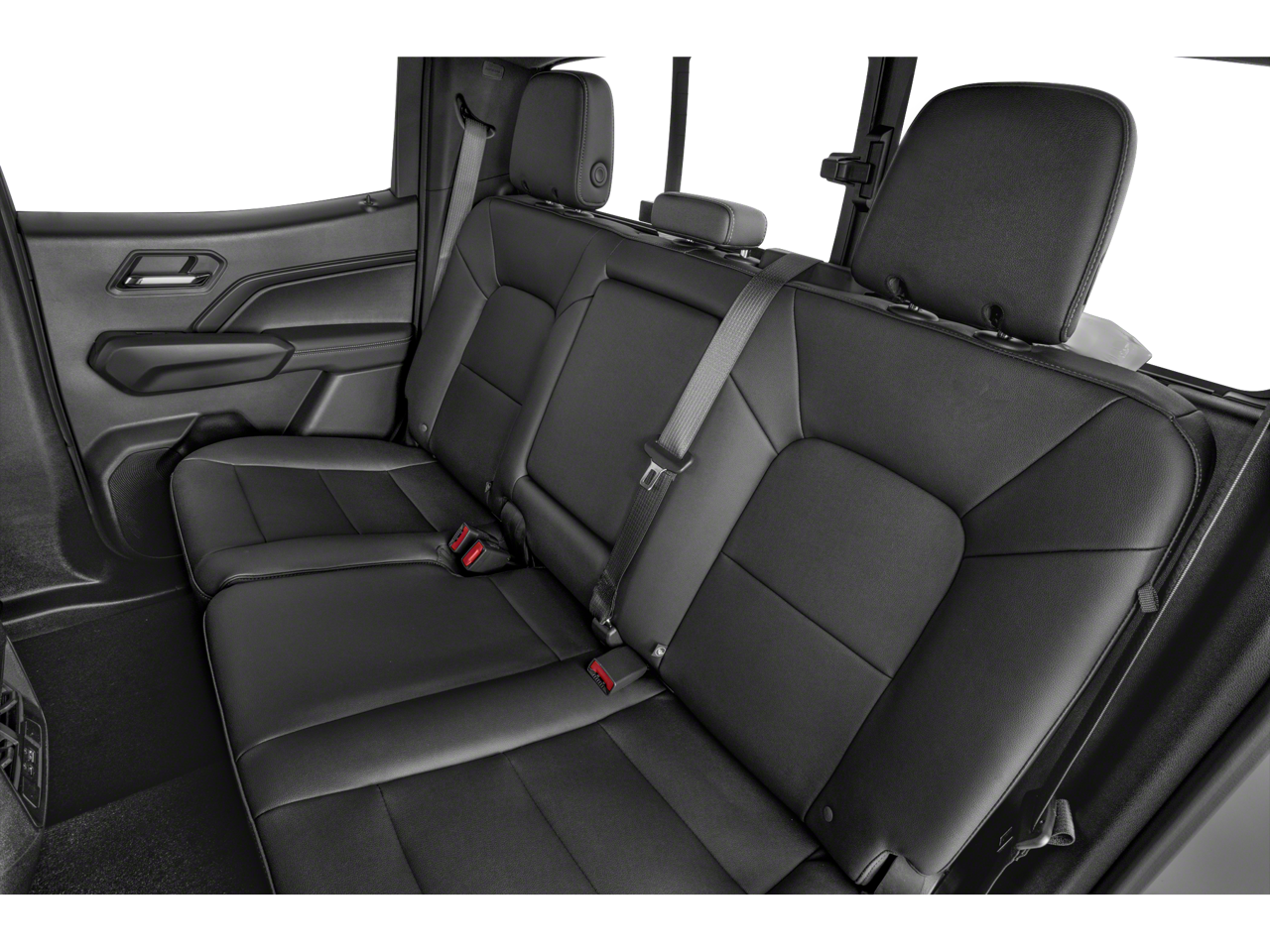

• Split folding rear seat
• Front Passenger Seatback Map Pocket
• Passenger door bin
• Alloy wheels
• Wheels: 18" x 8.5" Dark Gray Painted Aluminum
• Variably intermittent wipers
• 3.42 Rear Axle Ratio

• Mileage
• Fuel Economy Est-Combined (MPG): 20
• EPA Fuel Economy Est - City (MPG): 18
• EPA Fuel Economy Est - Hwy (MPG): 23
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 800
• Maximum Alternator Capacity (amps): 170
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3500
• Gross Axle Wt Rating - Rear (lbs): 3600
• Curb Weight - Front (lbs): 2383
• Curb Weight - Rear (lbs): 1938
• Gross Vehicle Weight Rating Cap (lbs): 6100
• Gross Combined Wt Rating (lbs): 9100
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7700
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 770
• Maximum Trailering Capacity (lbs): 7700
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 3500
• Spring Capacity - Rear (lbs): 3600
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): 3500
• Axle Capacity - Rear (lbs): 3600
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.4 x - TBD -
• Rear Brake Rotor Diam x Thickness (in): 13.3 x - TBD -
• Tires
• Front Tire Order Code: Q2P
• Rear Tire Order Code: Q2P
• Spare Tire Order Code: XCQ
• Front Tire Size: 265/65R18SL
• Rear Tire Size: 265/65R18SL
• Spare Tire Size: P265/70R17SL
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 18 x 8.5
• Rear Wheel Size (in): 18 x 8.5
• Spare Wheel Size (in): 17 x 8
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Electric Rack & Pinion
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): - TBD -
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Fully-boxed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 21.4
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 131.4
• Length, Overall (in): 213.2
• Width, Max w/o mirrors (in): 72.4 w/Mirrors Folded, 84.4 w/Mirrors
• Height, Overall (in): 79.8
• Overhang, Front (in): 34.5
• Overhang, Rear w/o bumper (in): 47.3
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): 23.4
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.6
• Ground Clearance, Rear (in): 9.6
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 61.7
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 58.1
• Cargo Box Width @ Wheelhousings (in): 45.5
• Cargo Box (Area) Height (in): - TBD -
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 41.9
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 40.3
• Front Leg Room (in): 45.2
• Front Shoulder Room (in): 57.4
• Front Hip Room (in): 54.7
• Second Head Room (in): 38.3
• Second Leg Room (in): 34.7
• Second Shoulder Room (in): 56.1
• Second Hip Room (in): 53.1
• Summary
• Vehicle Name: GMC Canyon
• Body Style: Crew Cab Pickup
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 8.9
